Legrand Mallia 1 Gang 13A 250 V Single Pole Switched Socket
د.إ15.80
10 in stock
Fast Shipping
Carrier information
20k products
Payment methods
24/7 Support
Unlimited help desk
2-day Delivery
Track or off orders
| Rating | Silver |
|---|
Description

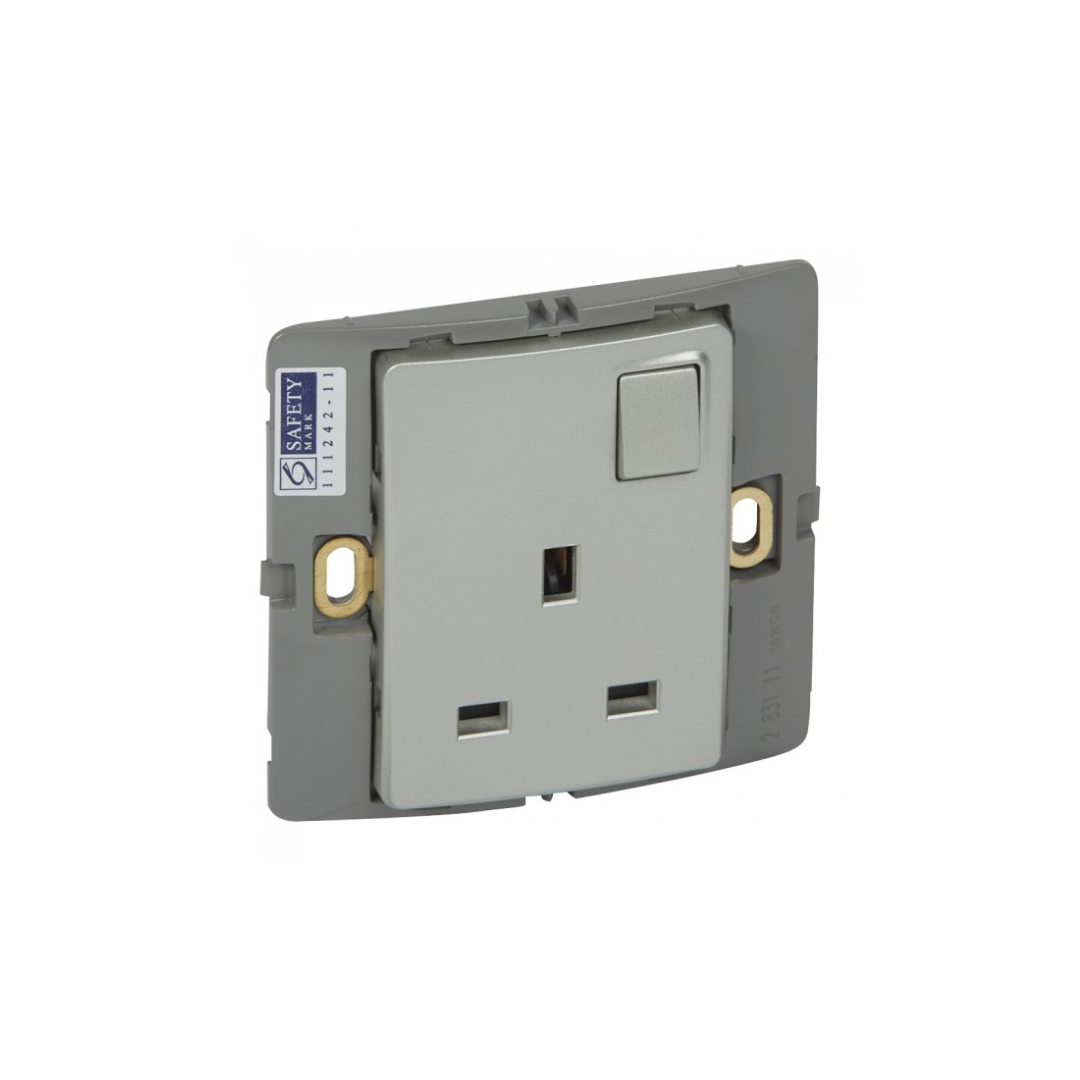

The Legrand Mallia 1 Gang 13A 250V Single Pole Switched Socket is a wall-mounted electrical outlet that provides power to devices or appliances. The socket comes with a single-pole switch, which means that it can control the power supply to only one line of the appliance or device that is connected to it. It also has an earth terminal fitted in the socket for safety purposes. The socket is made of thermoplastic material and has a white finish, which makes it durable and aesthetically pleasing.
It is designed to be easy to install and use and is compatible with a wide range of devices and appliances that require a 13-amp power supply. The Legrand Mallia 1 Gang 13A 250V Single Pole Switched Socket is a reliable and convenient electrical outlet that is suitable for both residential and commercial applications.
Benefits
- Versatility
- Safety
- Energy efficiency
- Convenience
- Increased functionality
Features
- Gang: 1
- Voltage: 250V
- Amperage: 13A
- Type: Single-Pole Switched Socket.Material: Thermoplastic
How to use
Step 1: Before installing or replacing the socket, make sure the power supply to that particular circuit is turned off. You can do this by turning off the circuit breaker or removing the fuse that supplies power to the circuit.
Step 2: Decide on the location where you want to install the socket. This is typically installed on a wall where a power outlet is needed.
Step 3: If you are replacing an old socket, remove it from the wall by unscrewing the screws that hold it in place. Gently pull the socket out of the wall to reveal the wires behind it.
Step 4: The socket will have three terminals labelled “L,” “N,” and “E.” Connect the incoming “live” (usually brown or red) and “neutral” (usually blue or black) wires and the earth wire (usually green or yellow/green) to the corresponding terminals. It is important to make sure the wires are connected securely and correctly to ensure safety and proper functionality.
Step 5: Once the wires are connected, push the socket back into the wall and secure it in place with screws.
Step 6: Once the socket is installed, turn the power supply back on and test the socket to make sure it is working properly. You can do this by plugging in a device and turning on the switch to supply power to the socket. Make sure that the total load of the device does not exceed the maximum capacity of the socket, which is 13 amps.
