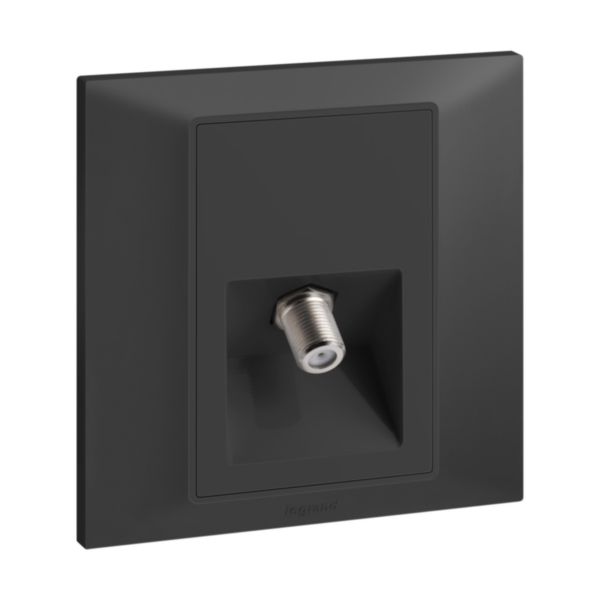

Legrand Belanko S – single TV socket, F type –

A single TV-F type connector is a type of coaxial cable connector that is commonly used to connect a television or other device to a cable or satellite TV system. The “F Type” refers to the type of connector, which is a threaded connector that screws onto the end of a coaxial cable. The Single TV-F Type connector has a single connection point and is used for connecting a single TV to a cable or satellite TV system. The connector is designed to provide a secure and reliable connection that minimises signal loss and interference.
To use a single TV-F type connector, you will need a coaxial cable with an F type connector on one end and the appropriate connector on the other end to connect to your TV or other device. The F-type connector is often used with RG6 or RG59 coaxial cables, which are designed to carry high-frequency signals with minimal loss.

Features

• Designed for a single TV output, making it ideal for use in small homes or apartments
• High-quality materials that are durable and designed to withstand regular use
• Provides a secure and reliable connection for cable and satellite TV signals

How to use

Step 1: Decide where you want to install the wall plate, and choose a location that is close to your cable or satellite TV outlet.

Step 2: Turn off the power to the cable or satellite TV outlet.

Step 3: If you are replacing an old wall plate, use a screwdriver to remove the screws and gently pull the wall plate away from the wall.

Step 4: Connect the cable or satellite TV cable to the F-Type connector on the wall plate.

Step 5: Align the wall plate with the mounting screws and gently push it into place. Use the screws to attach the wall plate to the wall.

Step 6: Turn on the power to the cable or satellite TV outlet.

Step 7: Connect your TV to the wall plate using a coaxial cable.

Step 8: Turn on your TV and check to see if you have a clear signal. If there are any issues, double-check the connections and make sure they are secure.
