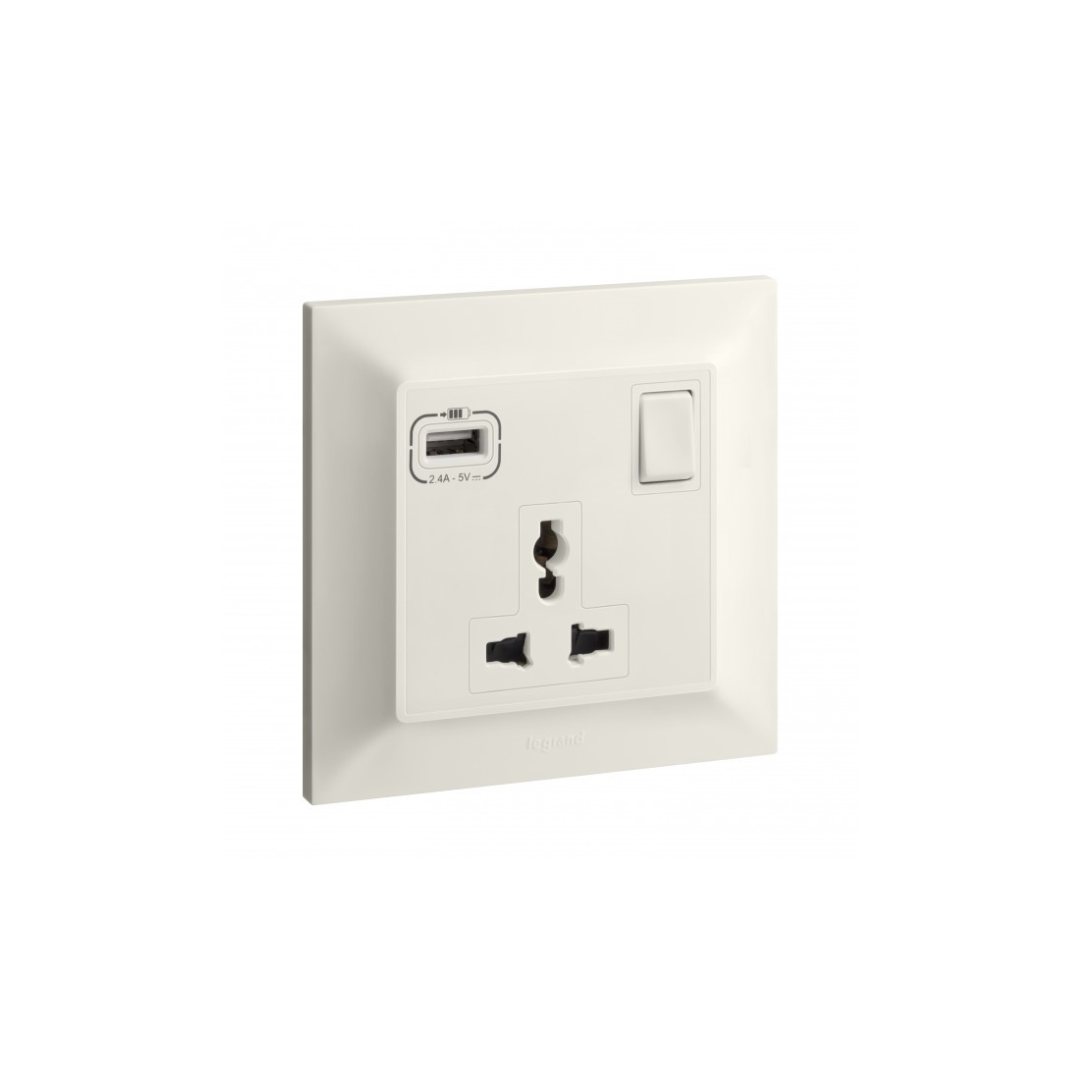

Legrand Belanko S 13A Single Universal Switch Socket + Usb A

A 13A single universal switched socket with USB A is an electrical outlet that provides both a standard 3-pin socket and a USB charging port for powering and charging various electrical devices, including those from different countries. It is typically installed in the walls of buildings and is used to power a wide range of electrical appliances, such as smartphones, tablets, and other USB-powered devices that use different plug types. The socket has a universal configuration that includes a grounding pin and slots that can accommodate various types of plugs from different countries.
It also has an additional USB port for charging, which typically provides a 5V DC output and can deliver up to 2.4 amps of current to charge USB-powered devices quickly. The switch on the socket is used to control the power supply to the connected device, providing greater control over the device and enabling energy savings when it is not in use. The socket is usually made of durable materials, such as plastic or metal, and is designed to withstand regular use and wear and tear.

Benefits

• Versatility
• Safety
• Energy efficiency
• Convenience
• Increased functionality

Features

• Compatible with multiple types of plugs, including UK, EU, US, and Australian
• Control the power supply to the socket
• Made of fire-resistant materials such as polycarbonate, which can withstand high temperatures

How to use

Step 1: Before installing or replacing the socket, make sure the power supply to that particular circuit is turned off. You can do this by turning off the circuit breaker or removing the fuse that supplies power to the circuit.

Step 2: Decide on the location where you want to install the socket. This is typically installed on a wall where a power outlet is needed.

Step 3: If you are replacing an old socket, remove it from the wall by unscrewing the screws that hold it in place. Gently pull the socket out of the wall to reveal the wires behind it.

Step 4: The socket will have three terminals labelled “L,” “N,” and “E.” Connect the incoming “live” (usually brown or red) and “neutral” (usually blue or black) wires and the earth wire (usually green or yellow/green) to the corresponding terminals. It is important to make sure the wires are connected securely and correctly to ensure safety and proper functionality.

Step 5: Once the wires are connected, push the socket back into the wall and secure it in place with screws.

Step 6: Once the socket is installed, turn the power supply back on and test the socket to make sure it is working properly. You can do this by plugging in a device and turning on the switch to supply power to the socket.

To use the USB ports:

Step 1: The USB-A port is typically located on the faceplate of the socket and is marked with “USB-A” or a symbol that resembles the USB-A port.

Step 2: Plug the USB cable of the device you want to charge into the USB port on the socket. Make sure the cable is inserted securely.

Step 3: Once the device is connected to the USB-C port, it should start charging automatically.
